    PQWT-TC150 Portable PQWT Water Detector Underground Multifunction 150M

    Ask Lasest Price
    Brand Name : PQWT
    Model Number : PQWT-TC150
    Certification : CE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal, Credit Card
    Supply Ability : 1000 sets per month
    Delivery Time : 5~7 working days
    • Product Details
    • Company Profile

    PQWT-TC150 Portable PQWT Water Detector Underground Multifunction 150M

    PQWT-TC150 Portable Multi-function Underground Water Detector 150M


    Introduction to Instrument

    PQWT-TC150.150M underground water detector

    The Instrument called as (Natural Electric Field Frequency Selection System) geophysical instrument, shortly known as frequency system.

    Instrument working on the principle of electrical difference of natural earth magnetic field, the several different frequencies of electromagnetic field changes is the law to study the underground field material changes to solve the Geological problems.

    The measurement data is Self-potential, and the unit is millivolt.


    Main Features

    1. High Speed and High Efficiency
    Complete more than 8000 meters profile measurement in one day to realize geological abnormality in different depth, the prospecting speed and efficiency are improved about 10 times more than traditional resistivity method.
    2. Easy to Carry
    Without the heavy power supply, it uses low-frequency signals in earth natural electric field as the signal source, and the complete set weight is less than 2kg so easy to carry
    3. Simple Operation
    Equipment is automatically controlled by the micro PC. You can learn its operation in 10 minutes.
    It will take 0.5h for persons without prospecting experience to finish training.

    4. Good Accuracy, High Accuracy
    The resolution of the measurement is up to 0.001mV, and precision is ±2%.

    It gains high stability and abnormity curves matching with that of traditional geo-electrical equipment in lots of field survey.

    5. Anti-interference Ability
    It has advanced anti-jamming technology and multiple anti-jamming designs. You can observe
    abnormity curves result with good repetition even in the weak signal area, city, high electric jamming area and working area with other exterior interference via frequency selector and digital processing.
    6.A key to mapping
    The detector is fully automatic form mapping after sampling data no need the computer drawing mapping


    Technical Parameters

    Model No.DepthAccuracyChannelFrequencyLCDPSOther
    PQWT-TC150

    150

    meter

    0.001mv4

    Single,

    Triple

    33 Frequency

    Industrial 7-inch HD touchscreenDC12V 4000mAh
    Built-in Battery
    1.Automatic noise reduction,
    super anti-jamming.
    2.User-friendly interactive
    interface, high-speed CPU
    control, the menu prompts.
    3.Automatic measurement,s
    storage of data, drawing curves.
    4. The data will be saved
    automatically after the shutdown
    5.It can store 999 single band,
    tri-band and multi-frequency
    measurement data.
    6. The data could be imported
    into the computer directly for
    Charting.
    7.Using rechargeable batteries,
    Electrode detection, power
    monitoring function.

    PQWT-TC300

    300

    meter

    0.001mv6

    Single,

    Triple,

    40 Frequency

    Industrial 7-inch HD touchscreen

    DC12V

    4000mAh
    Built-in Battery

    PQWT-TC500

    500

    meter

    0.001mv8

    Single, Triple,

    56 Frequency

    Industrial 7-inch HD touchscreenDC12V 4000mAh
    Built-in Battery

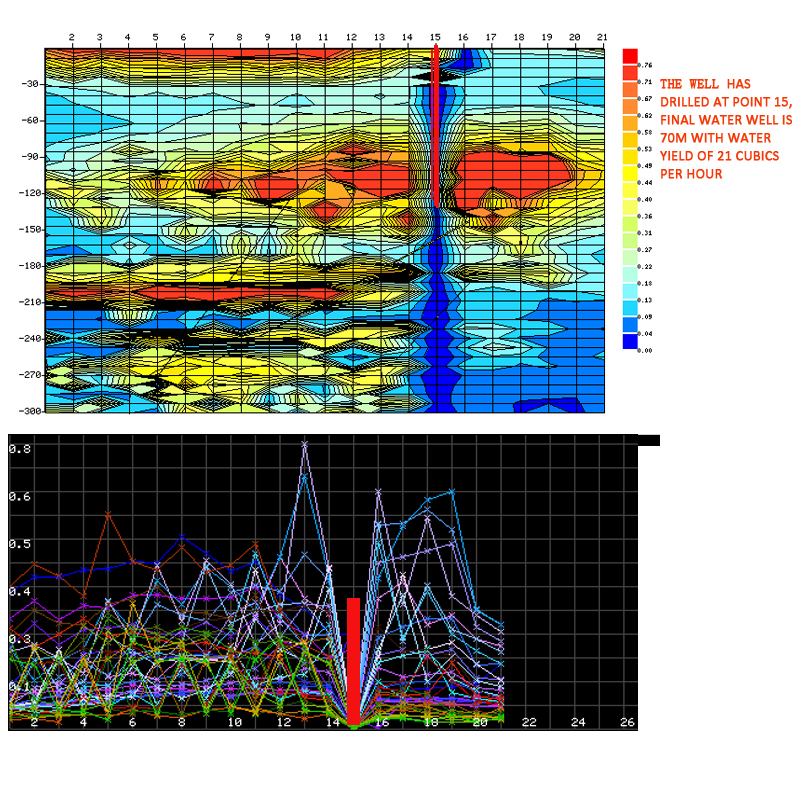

    Product Picture


    PQWT-TC150 Portable Multi-function Underground Water Detector for sale

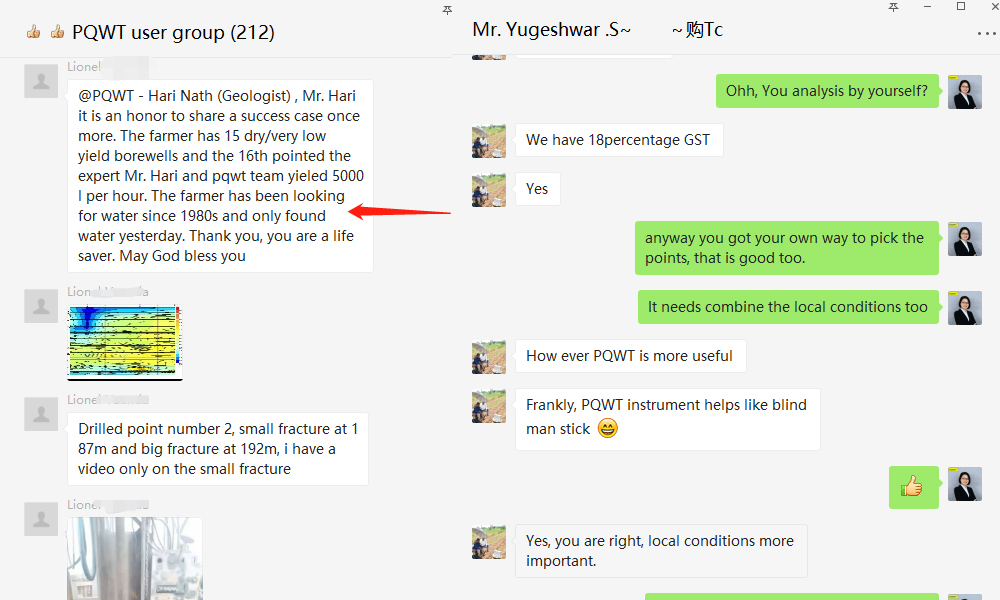

    Buyer Feedback

    PQWT-TC150 Portable Multi-function Underground Water Detector for sale

    PQWT-TC150 Portable Multi-function Underground Water Detector for sale PQWT-TC150 Portable Multi-function Underground Water Detector for sale


    About us

    PQWT-TC150 Portable PQWT Water Detector Underground Multifunction 150M

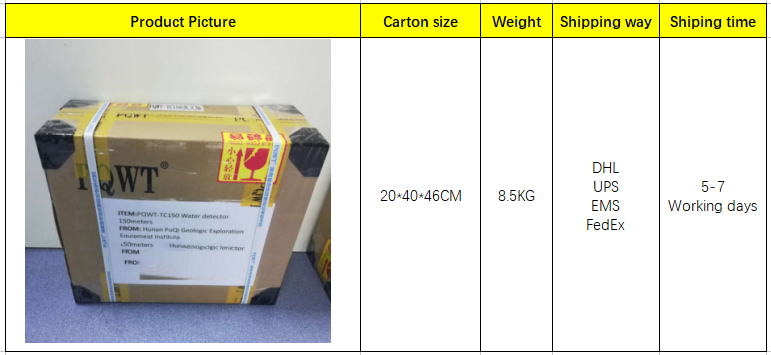

    Packaging & Shipping


    PQWT-TC150 Portable Multi-function Underground Water Detector for sale
